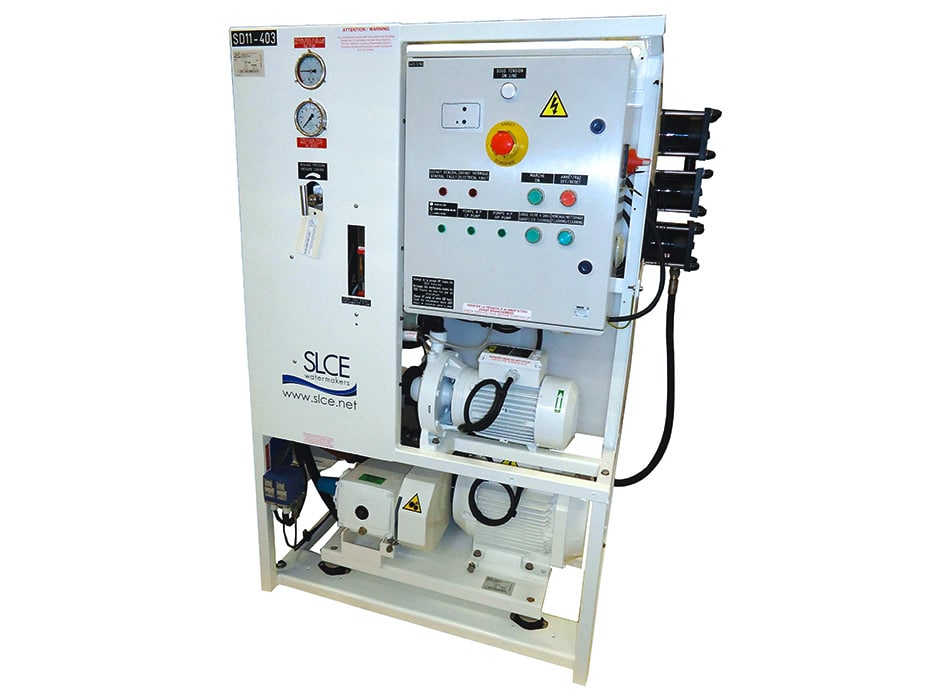

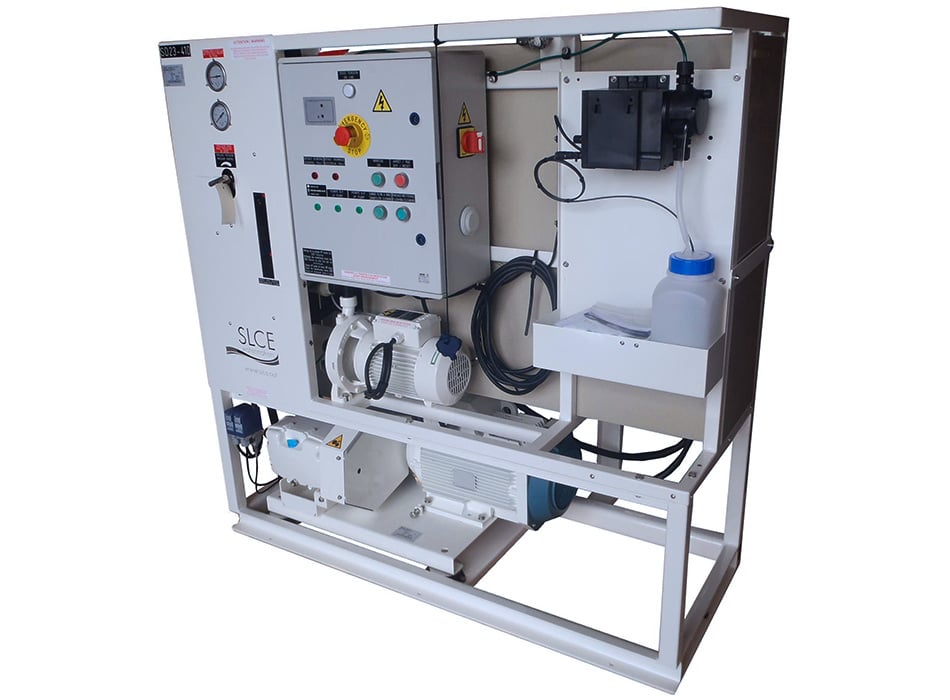

Desalinator sea water

Range SD11/SD21/SD22/SD23

From 5 to 40 m³/day

Very compact unit: excellent compromise between production capacity and footprint, suitable for medium tonnage vessels or land applications: tuna vessels, frigates, offshore service, yachts, hotels, life bases, etc. Modular: easy installation on existing ships Standard units come with the following features:

Feed pump with its strainer
Sand filter with low filtration speed
20µ and 5µ filtration
High pressure pump
High rejection membranes
Automatic flushing at low pressure and high flow
Cleaning in place
Salinity control of the water produced
Re-hardening filter

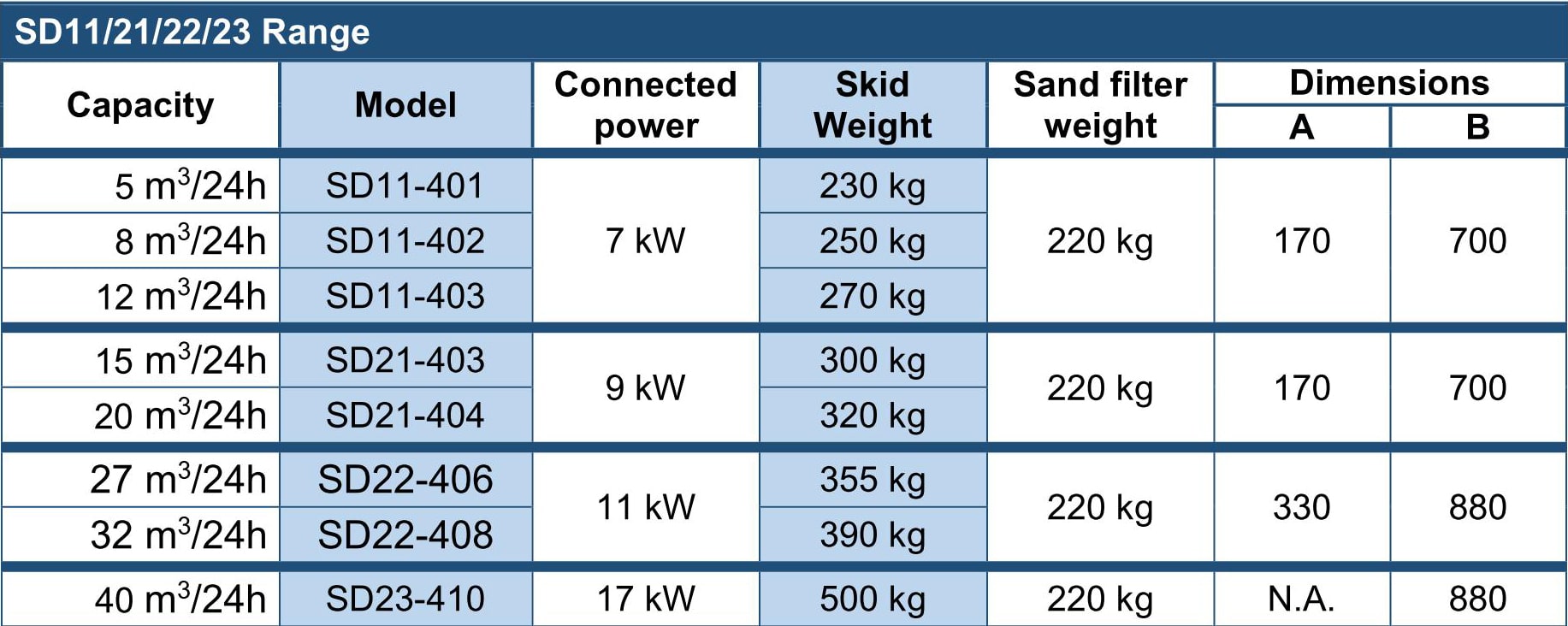

Characteristics

Capacity given at +/-10% for standard sea water at 25°C and 35g/l.
Power consumption is around 20% less than the installed power.

Download documentation

Access the complete documentation

Enjoy exclusive access to comprehensive technical information that will help you maximize the use of your equipment.

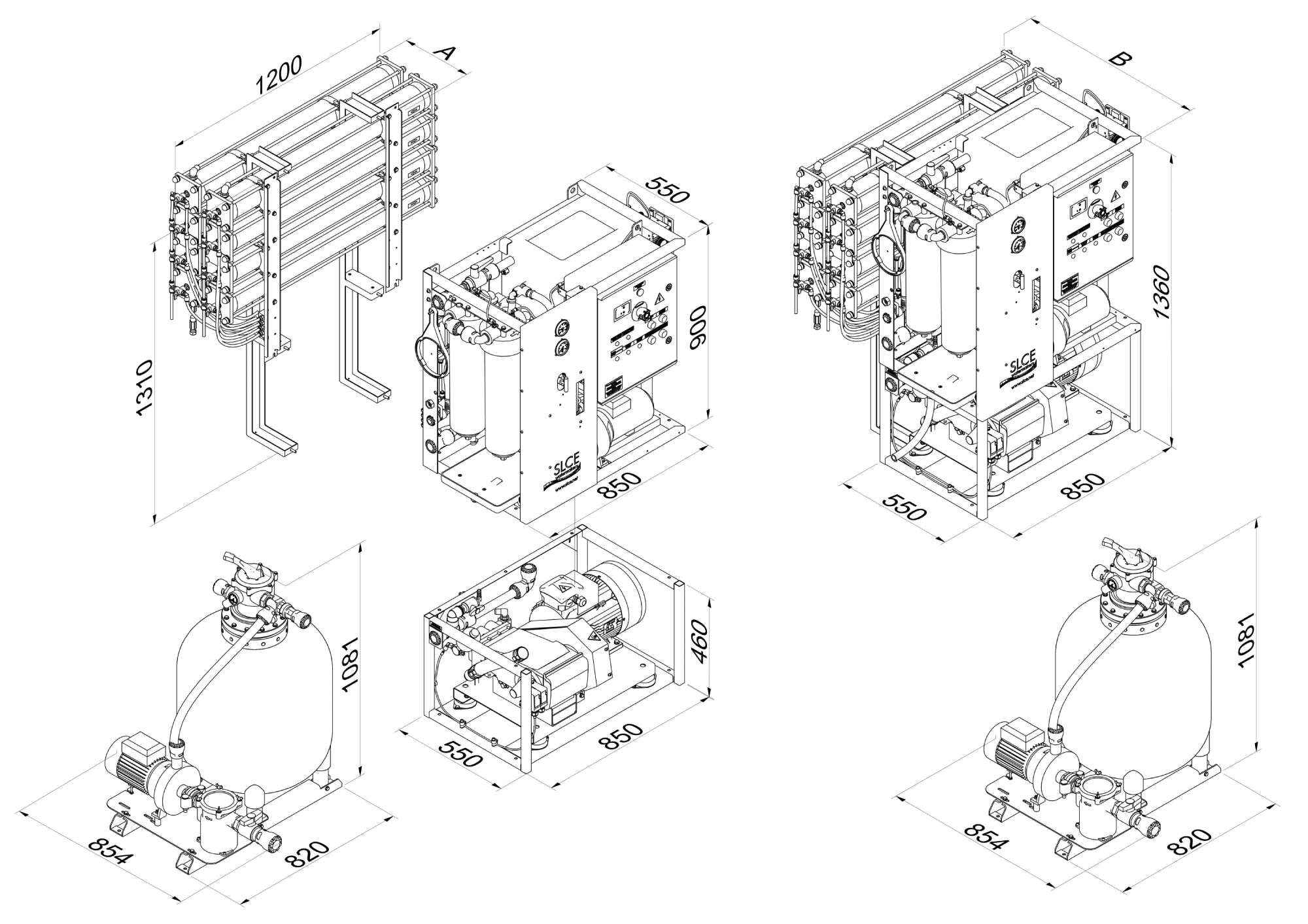

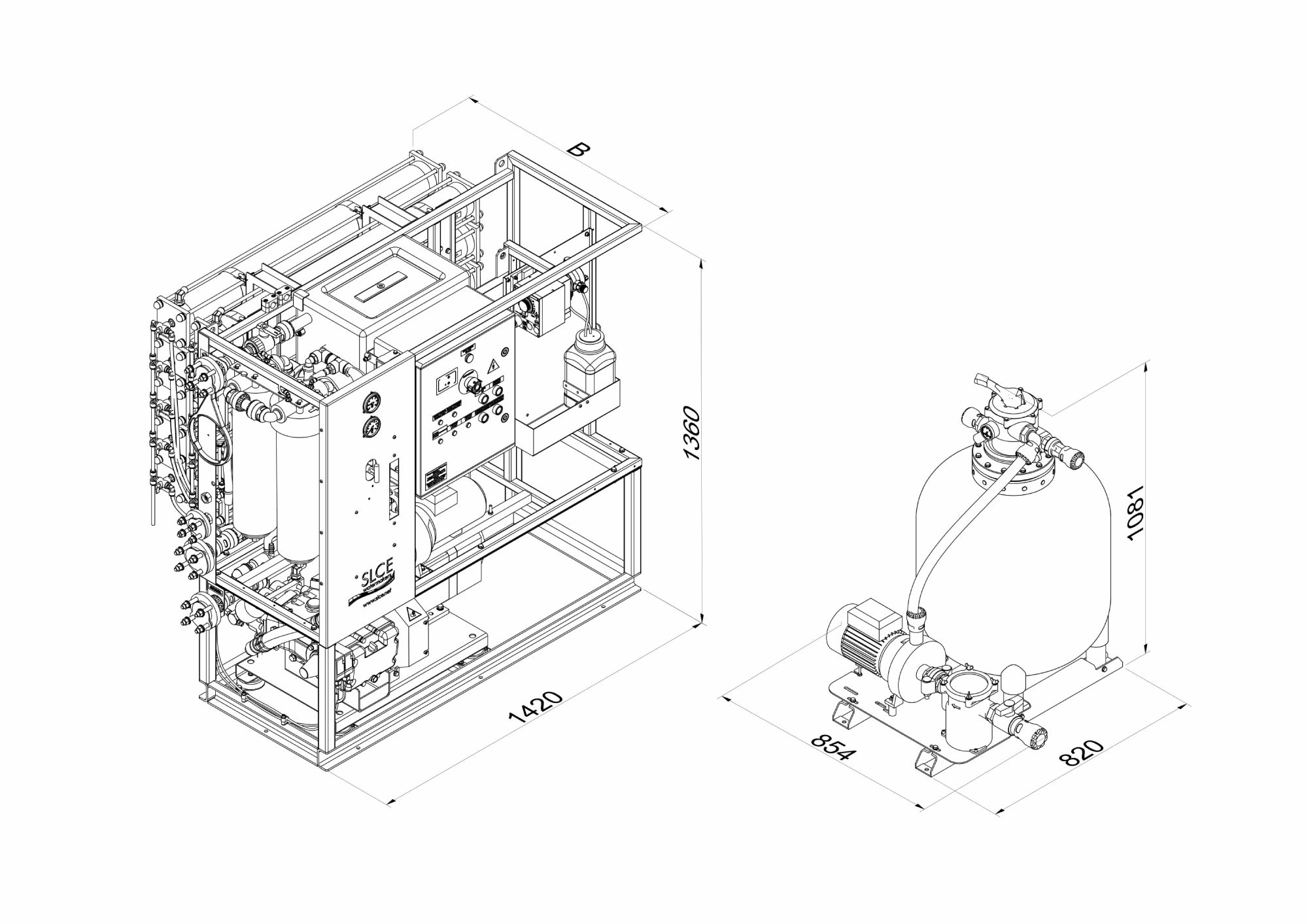

Dimension

SD11/21/22 range
SD23 range

1 2

Options

2nd stage
Production of industrial water in addition to the freshwater.

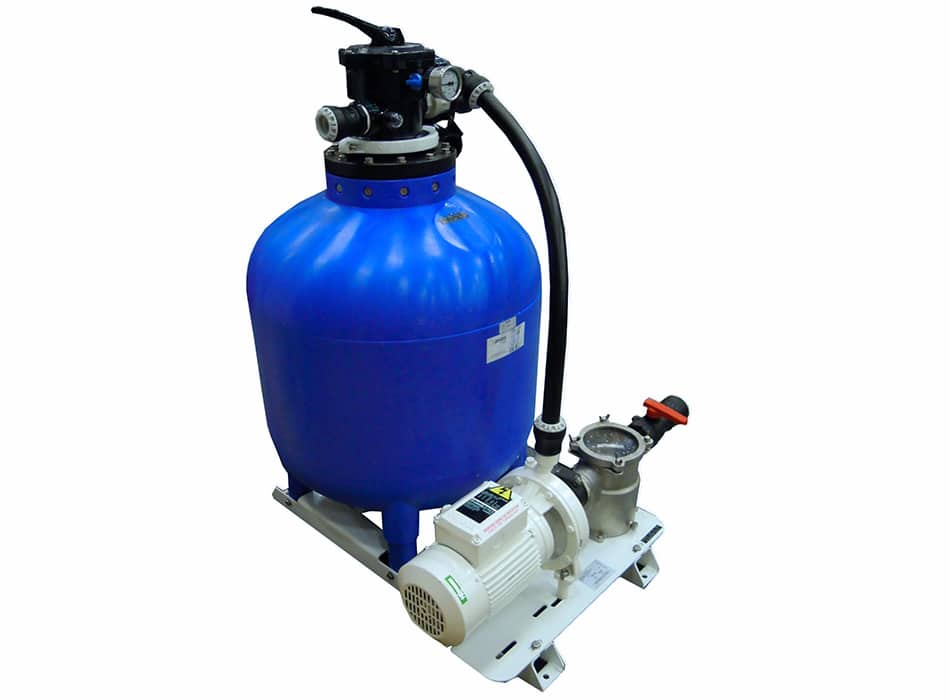

Automatic sand filter
Automatic backwash cycle.

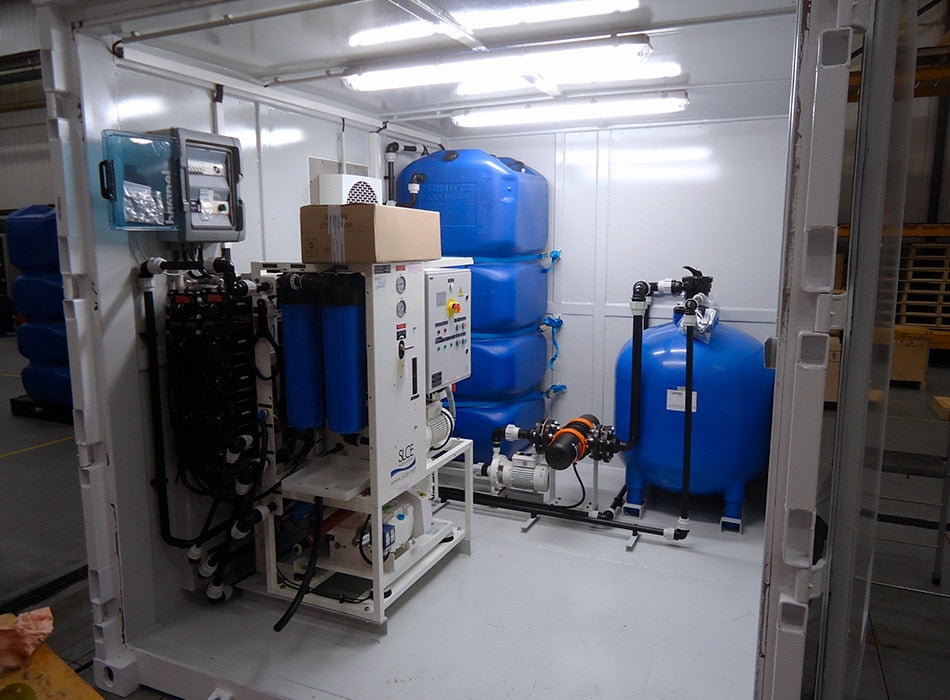

Containerisation
Installation in a 10, 20 or 40 feet container for mobile applications.

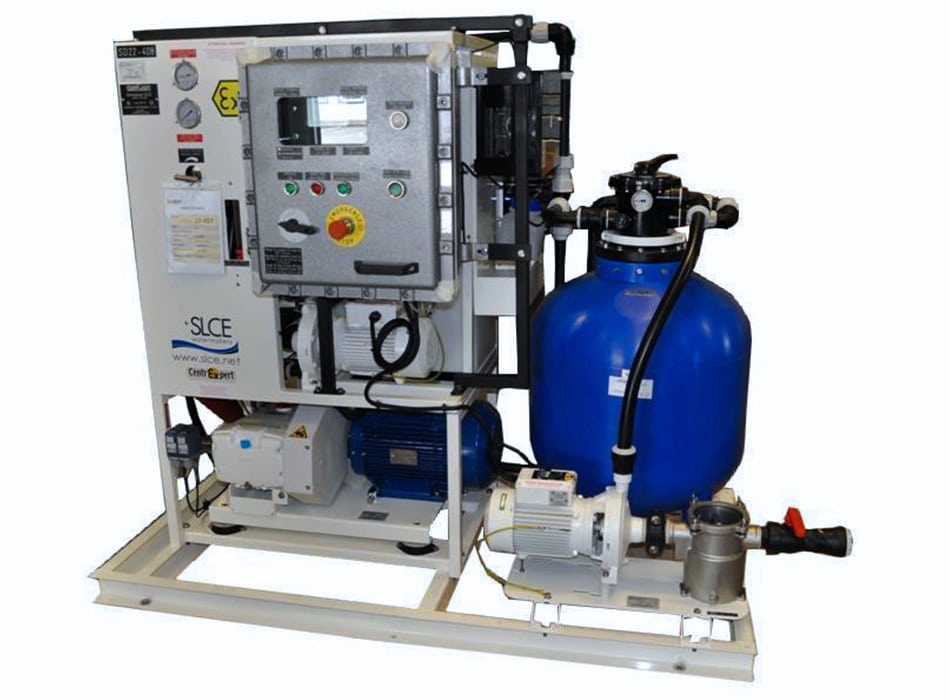

ATEX
"Atexisation" for explosive environments.
Pre-treatments
Oil removal filter, dechlorination…
Post-treatments
Chlorination, UV sterilization…

For any other request, please contact us.

SD21-404

This application is a good illustration of SLCE watermakers design philosophy (easy to install, easy to operate).

Indeed, this unit, a SD21-404 producing 20m3/24h, has been installed and commissioned by the user himself within half a day on a remote island in the Philippines. Now, the unit operates 8h daily.

Not only does the unit improves the freshwater quality available on the island, it also reduces its cost. In this case, the cost used to be between 25 and 35 USD/m3. With the SD21-404 R/O unit, the cost has dropped as low as 3 USD/m3 (power consumption included).
